Hilux N70 SAS

Hilux N70 SAS

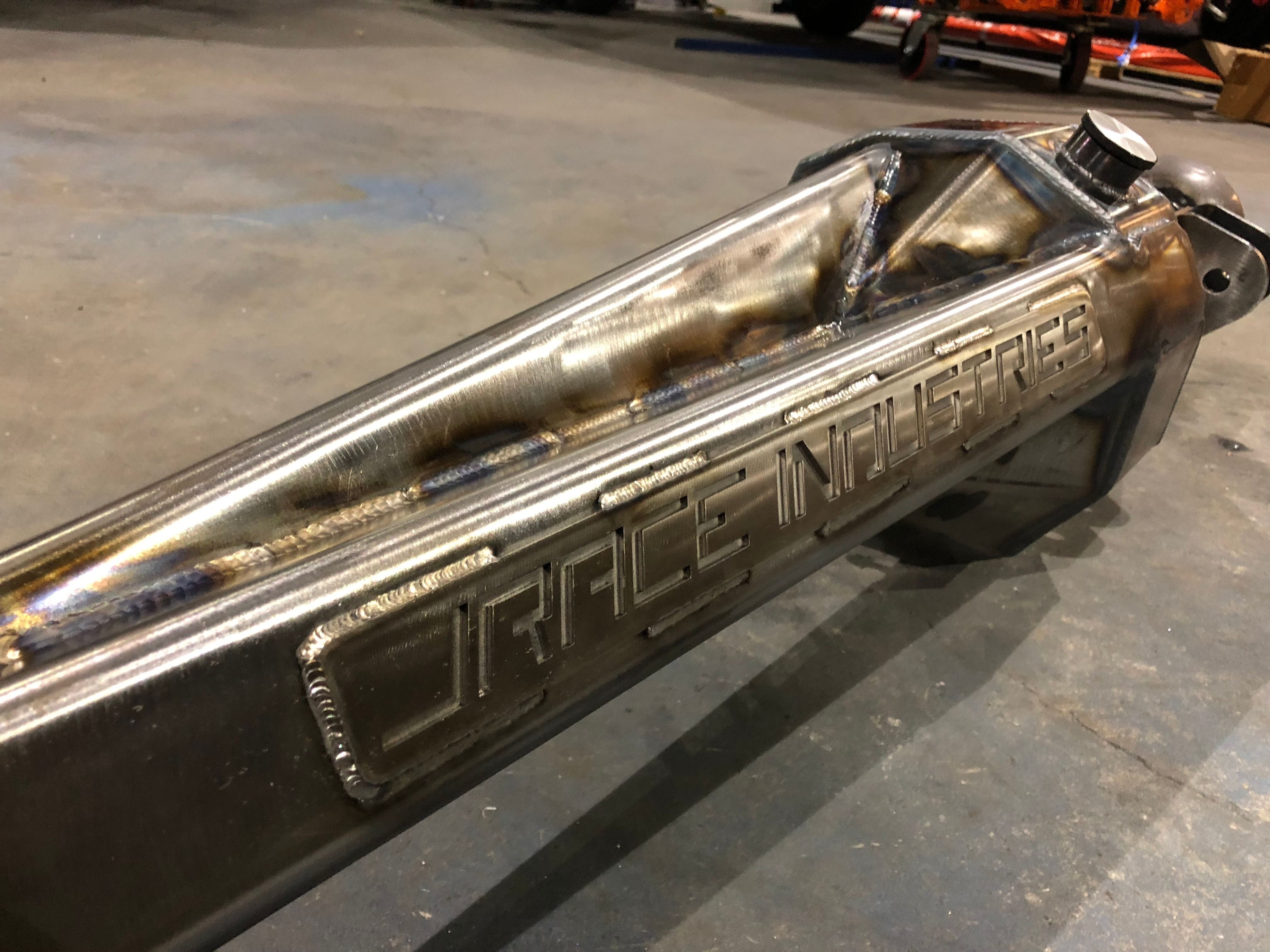

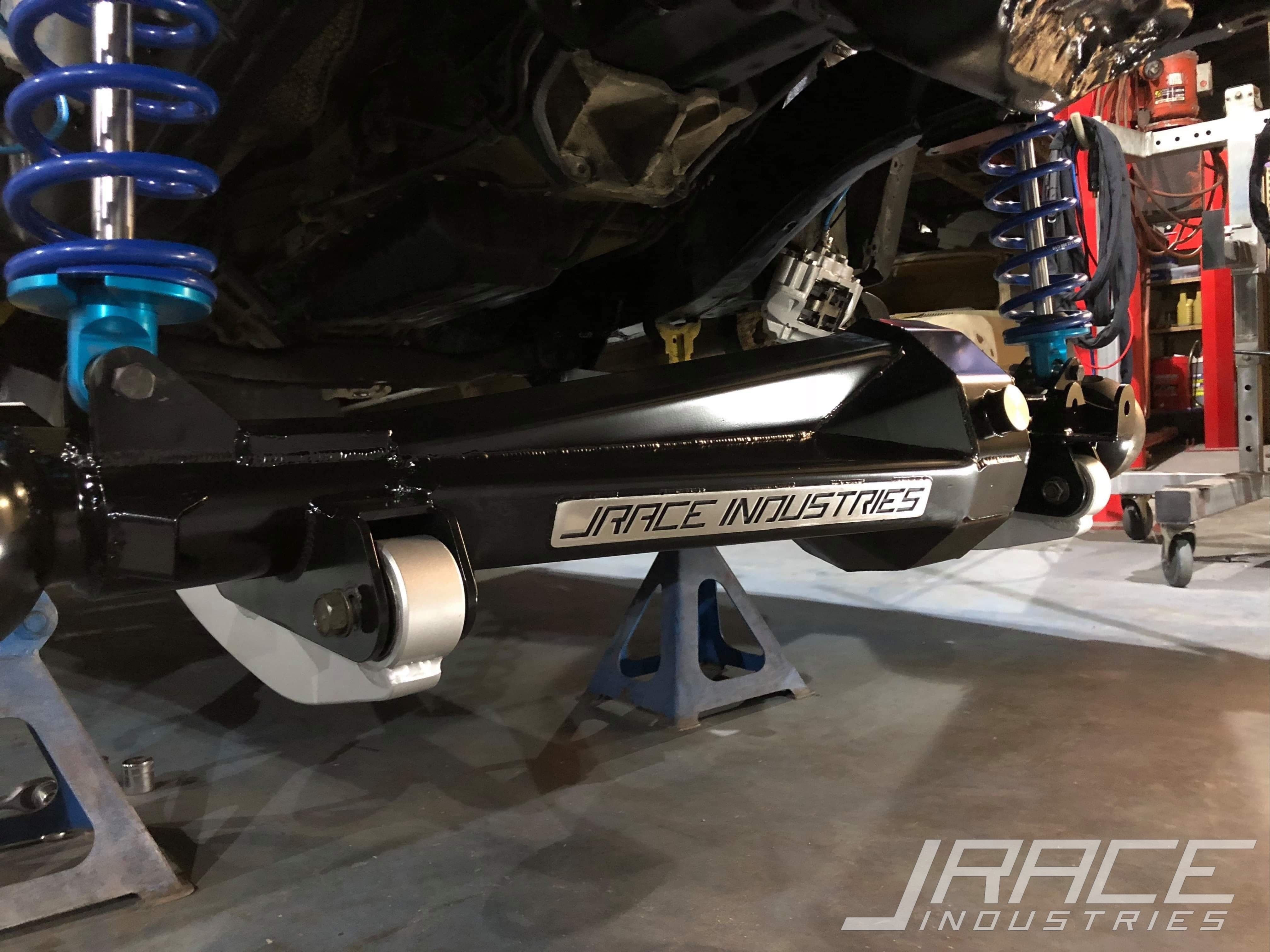

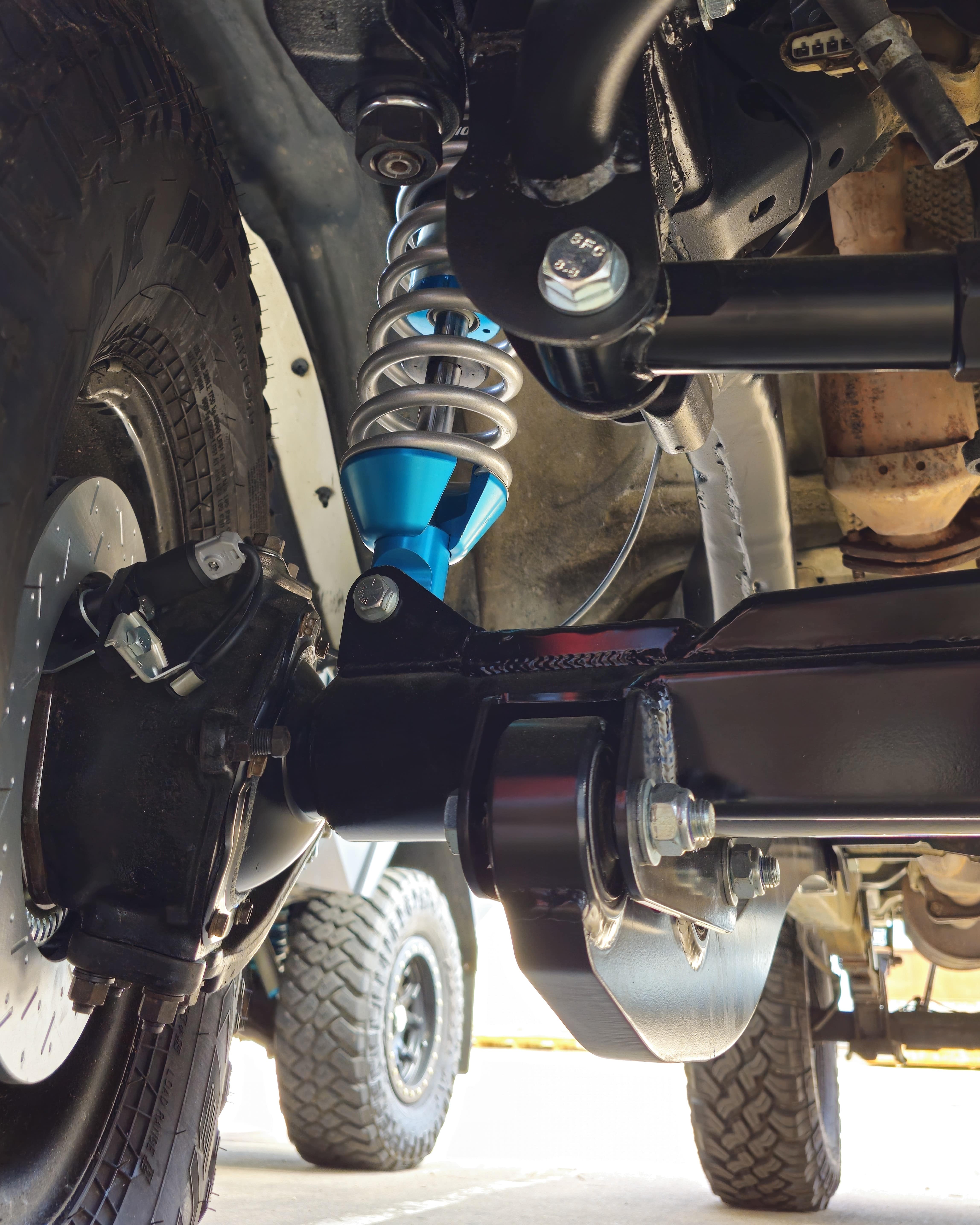

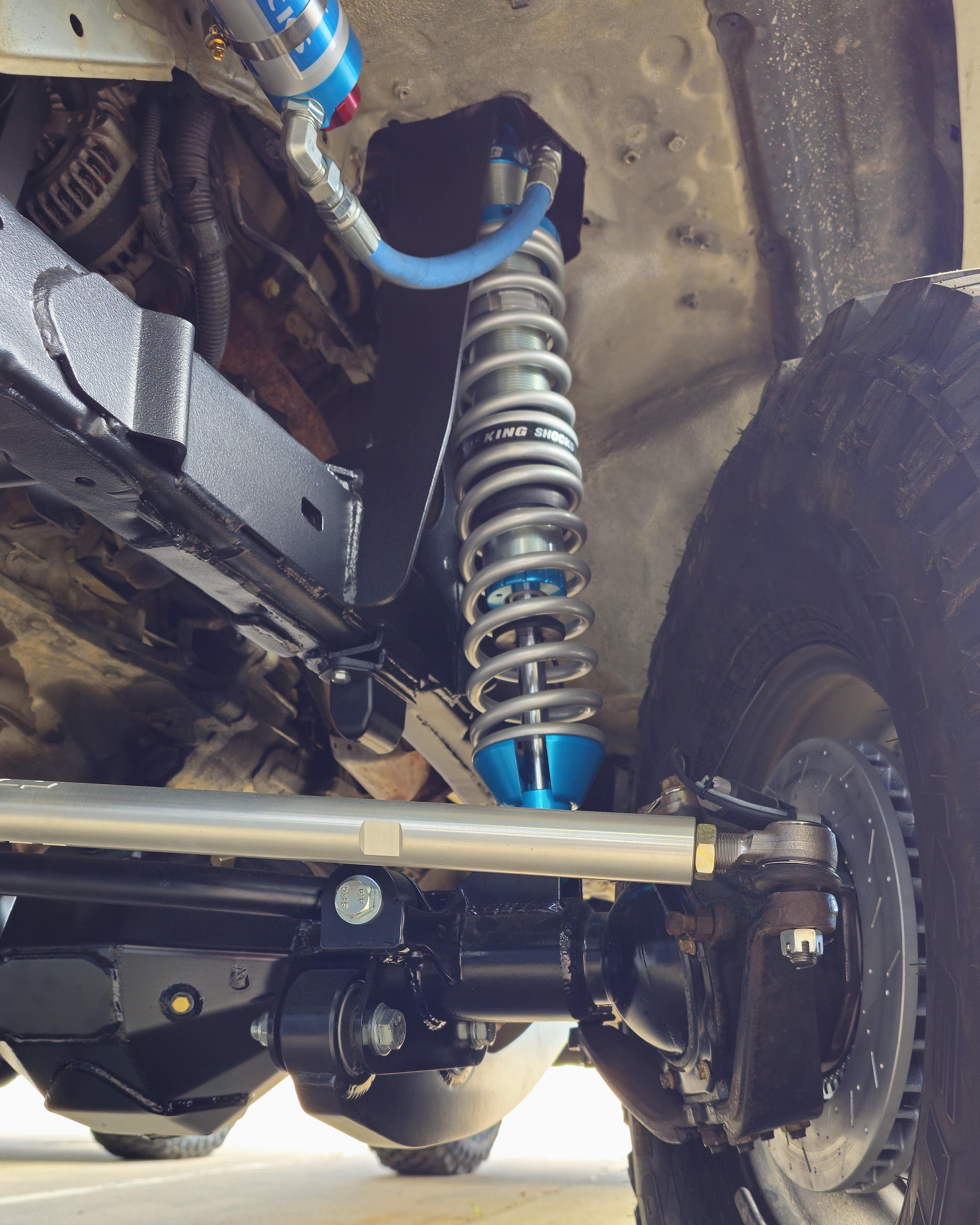

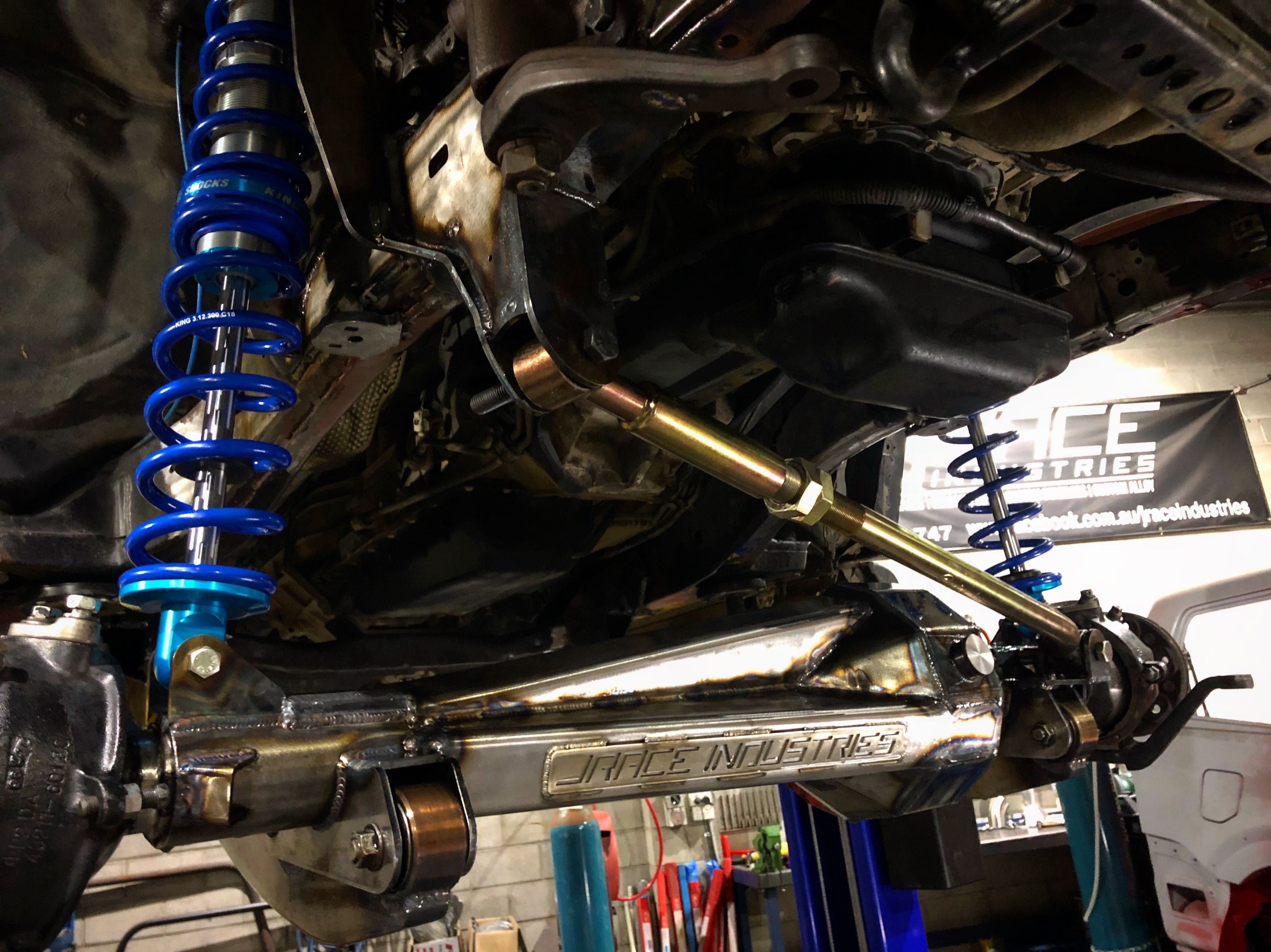

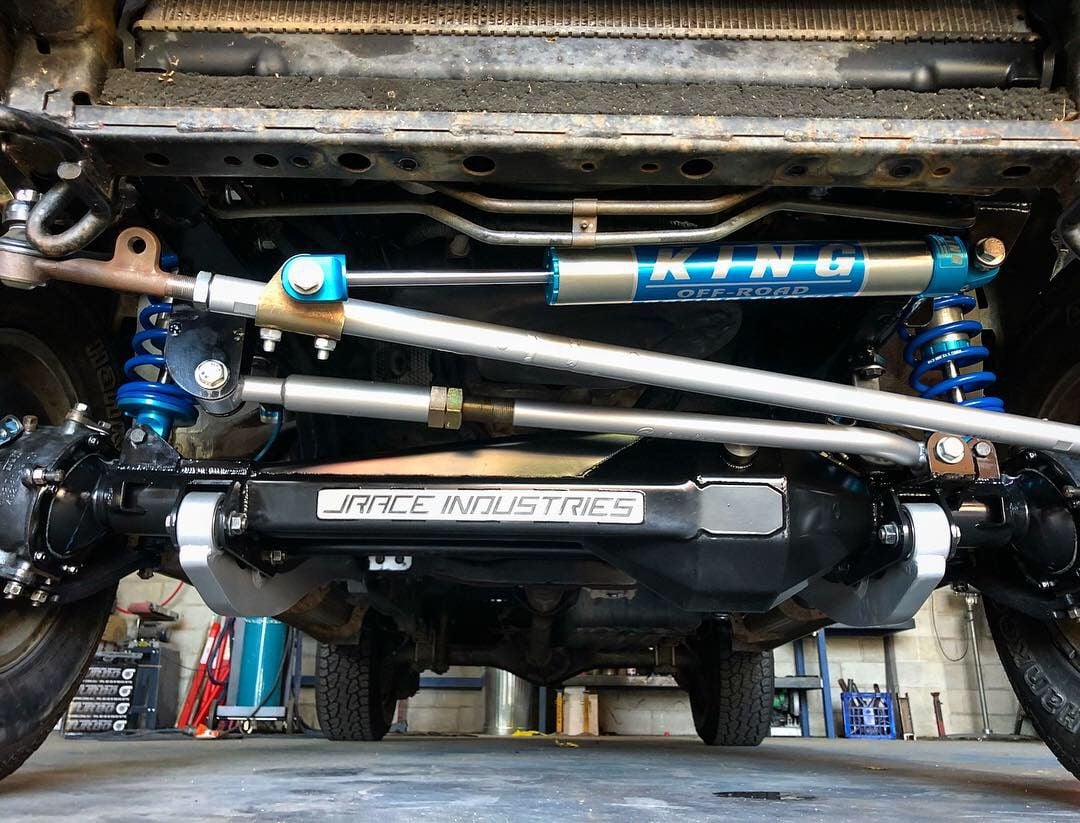

Our Hilix Solid Axle Swap kit. Our No Compromises approach includes all the best of the best components available on the market. Designed in house by our mechanical engineers and qualified suspension specialists. Fully computer analysed, and tested to 4x times the ADR strength requirements without failure. Pre-engineered with NCOP VSB design aproval. Chassis brackets that self align on factory holes and a ready to bolt in diff allow for quick and accurate installation. You wont find a stronger, more comprehensive kit on the Australian market.
  • Fully CNC lasercut
  • 5mm Shell
  • 10mm Faceplate
  • Internal Gussets
  • Chromolly Axle tube
  • 6mm Brackets
  • Fully braced
  • Heavy duty bump stop plates
  • Stainless steel sump plug
  • Professionally welded
  • 2.5 body coilovers
  • Remote res
  • Springs tailored to your vehicle
  • Valving tailored to your vehicle
  • Steering damper
  • Panhard - Solid comp spec
  • Drag link - Solid comp Spec
  • Radius arms - 32mm Heavy duty
  • Diff push for tyre clearance
  • Castor corrected for 2-4 inch lift
  • Computer deisgned
  • FEA tested
  • Unique design coil towers
  • High strength
  • Optimised suspension travel
  • VSB design aproval - Engineered
  • CNC lasercut
  • CNC folded

Stage 1

Our minimalist kit, includes all the key components to get the conversion done. Including: Complete Diff All Brackets and Towers Radius Arms King Coilovers and Damper Drag link Panhard Designed for the professional installer, with the ability to source additional parts.

Stage 2

Our comprehensive kit, includes all major components to get the job done. In addition to stage 1. This kit also contains: ABS kit Genuine radius arm bushes Swivel hub rebuild kits Wheel bearings All gaskets and seals Custom brake lines All nuts and bolts Machined coilover spacers Designed for the professional installer, or experienced DIY with the ability to source additional parts.

Stage 3

Complete installation, drive in, drive out, engineered. Complete professional installation Professional 2-pac industrial paint Chassis sealing and rust prevention Adjustments and wheel alignmnet Modification plate Includes new housing ends, manufacture of custom length prop shaft & power steering hoses. *Donor components required*
